Gewiss Enclosure Box 460 x 380 x 120mm IP56

Click to enlarge

Gewiss Enclosure Box 460 x 380 x 120mm IP56 Gewiss Enclosure Box 460 x 380 x 120mm IP56

Gewiss Enclosure Box 460 x 380 x 120mm IP56

Brand: Gewiss

Product Code: GW44211

Available stock: 6


£ 46.95 incl VAT
Unit:

Gewiss Enclosure Box 460 x 380 x 120mm IP56

Gewiss GW44211


JUNCTION BOX WITH PLAIN SCREWED LID - IP56 - INTERNAL DIMENSIONS 460X380X120 - SMOOTH WALLS - GREY


Range 44 CE - Surface-mounting waterthight junction boxes in compilance with EN 60670-1 (CEI 23-48) and IEC 60670-22 (CEI 23-94) and made in high-performance technopolymers. The range includes versions with protection degree IP44, IP55, IP56 with smooth walls or with quick entry cable glands and different type of covers: blind / transparent, deep/plain, press-on/screw (in plastic, also 1/4 turn, or in metal). Available in different self-extinguishing materials (up to GWT 960 oC). Suitable for ordinary junctions, for special uses, and for industrial uses.

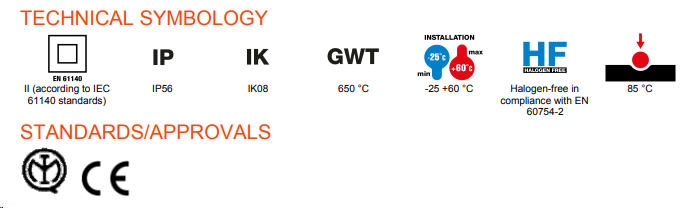

Specification


Insulation class - II (according to IEC 61140 standards)
IP degree - IP56
Mechanical resistance - IK08
Max 0 holes possible - 48 mm
Application - Ordinary junctions
Lid - Plain screwed
Type of material - Halogen-free in compliance with EN 60754-2
Thermo-pressure with ball - 85 oC
Walls - Smooth
Colour - Grey RAL 7035
Material Technopolymer - GWPLAST 75

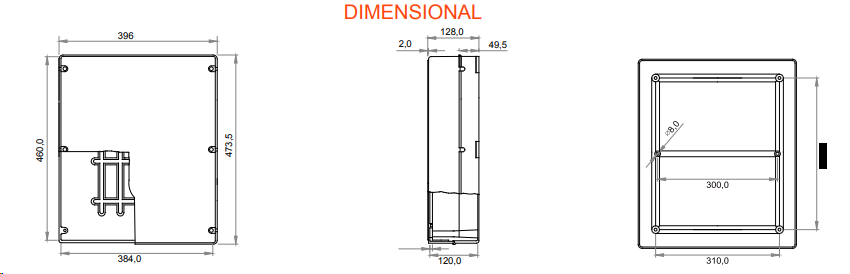

Internal dim. LxHxD (mm) - 460x380x120
Lid screws (no. and type) - 6 insul. sealable hinged
Glow Wire Test - 650 oC
Operating temperature - -25 +60 oC
Electrocod - 02211
Torque screws tightening 1.8 Newton/meter
Accessories for insulation restoring - GW44621
