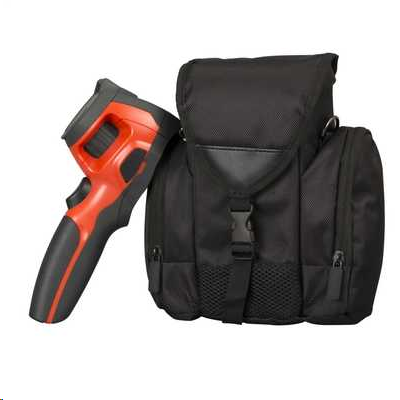

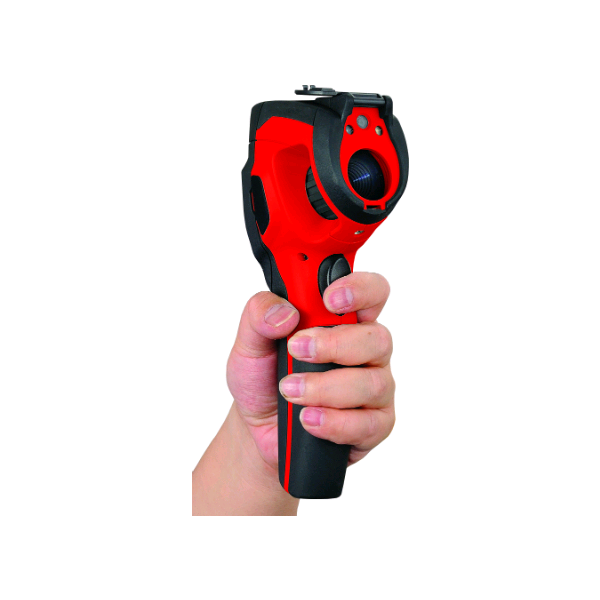

TIS Thermal Imaging Camera

PRODUCT CHARACTERISTICS

• High Resolution IR Images: 6400 pixels (80 x 80) infrared resolution
• Visible Light Detection Camera: 5 megapixels resolution with flash provides sharp images
• Picture In Picture: Displays thermal image superimposed over a digital image
• LED Flashlight: Allows the visual camera and fusion to be used in poorly lit areas
• Wide Temperature Range: -20^oC to +350^oC targeting industrial and electrical applications
• =2% Accuracy:Reliable temperature measurement
• Thumbnail View: Easy to view and analyse images quickly
• Audio Record with Video Images: A speaker to listen to the audio recorded with video image
• Li-Ion Rechargeable Battery: Lasts >4 Hours continuous use
• HDMI: High resolution video output
• Internal Memory: 100 Mb - About 80 images or one minute video record
• Copy to USB: Upload images to USB card
• Area (Min / Max) Mode: Shows the minimum and maximum temperature in the selected area


SPECIFICATIONS

Imaging and Optical Data

• IR Resolution: 80 x 80 Pixels
• Focal Plane Array (FPA) / Spectral Range: Uncooled microbolometer / 8-14um
• Focal Length: 9mm
• Field Of View (FOV): 17 x 17^o
• Minimum Focus Distance: 0.5m
• Spatial Resolution: 3.78mrad
• Thermal Sensitivity / NETD: <0.1^oC / 100mK
• Image Frequency: 50Hz
• Focus: Manual
• Zoom: 1-32x continuous digital zoom

Image Presentation

• Image Modes: IR image, Visual Image, Picture In Picture
• Picture In Picture: IR area or Visual Image
• Colour Palettes: IRON / Rainbow / Grey / Grey Inverted

Measurement

• Object Temperature Range: -20^oC to +350^oC (-4^oF to +662^oF)
• Accuracy: 2^oC (3.6^oF) or 2% of reading

Measurement Analysis

• Spotmeter: Centre spot, auto hot or cold markers

Set-Up

• Laser:
• Language Selection: English, Chinese, French, German, Spanish

Storage of Videos / Images

• Internal Memory: 100MB, approx 80 images or 1 minute video
• Storage Media: 8GB Micro SD Card
• Video Storage Format: Standard MPEG-4, 1280 x 960 @ 30fps, on memory card > 60 minutes
• Image Storage Format: Standard JPEG, including measurement data, on memory card > 1000 images

Digital Camera

• Built-in Visible Light Digital Camera: 5 Mega Pixels
• Built-in: 59^o

Data Communication

• Interfaces: Mini USB, Audio, HDMI
• USB: Data transfer between camera and PC. Live video betweeen camera and PC
• Video Out: HDMI

Power System

• Battery / Input Voltage: Li-Ion Battery, >4 Hours standard operating time / DC 5V
• Charge System: In Camera (AC adapter)
• Power Management: Automatic shutdown



GENERAL CHARACHTERISTICS

• Size (HxWxD) 224m x 77mm x 96mm
• Weight: 500g

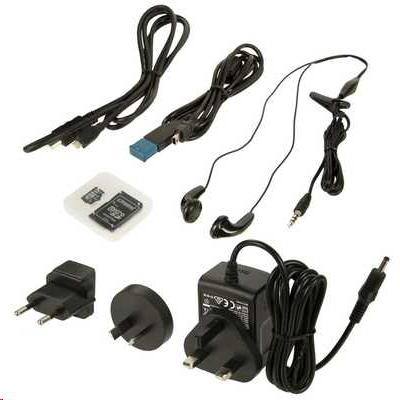

• Accessories: Earphone, Battery, Software CD-ROM, Wrist Strap, micro SD card, Adapter, USB Cable and HDMI Cable
